Step 01
Touch 2 outside buttons – Power and f3. Hold both buttons until display shows “Full Setup”. Wait 5 seconds, and the display will stop on "GEN.OPT" (General Operations Options)
Touch 2 outside buttons – Power and f3. Hold both buttons until display shows “Full Setup”. Wait 5 seconds, and the display will stop on "GEN.OPT" (General Operations Options)

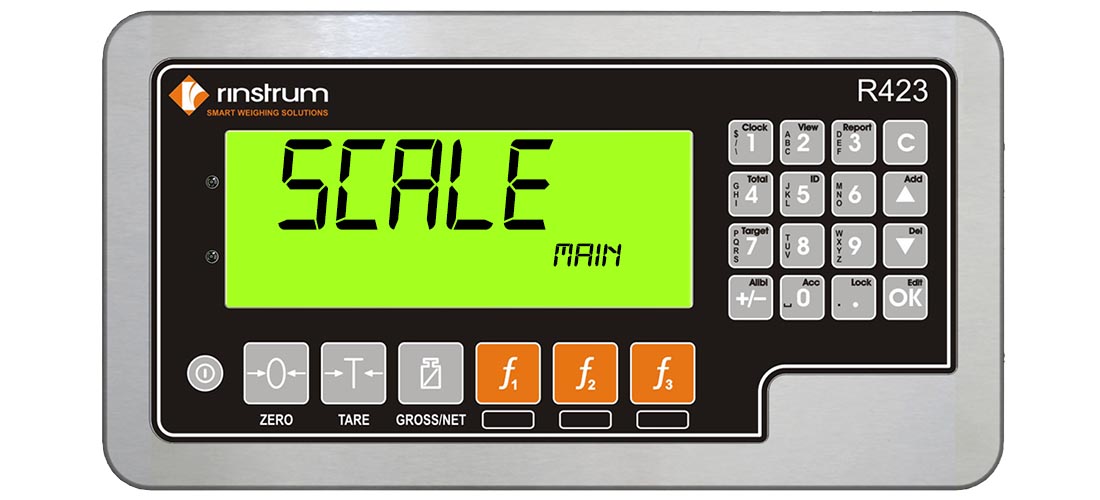

Momentarily touch – (in and out) – Zero button until display shows “SCALE.” Touch Tare button until display shows “BUILD.” Touch Gross Net button until display shows “TYPE SINGLE." Touch Gross Net button until display indicates “CABLE.” Use up or down arrow buttons unitl display indicates “4 WIRE.” Press OK twice. Touch Gross Net button until display shows “DP” (decimal point). Touch Gross Net button until display shows “CAP” (capacity). To change – touch OK button, dial in “100,000,” touch “OK.” Touch Gross Net button until display shows “E1” (increments). To change – touch OK button, touch up or down to change to “20,” touch OK button. Touch Gross Net button until display indicates “UNITS.” To change – touch OK button, touch up or down button to change to either kg or lb., touch OK button. Touch Gross Net button until display indicates “HI.RES off.” Touch Gross Net button until display indicates “TYPE SINGLE.” Touch Zero button

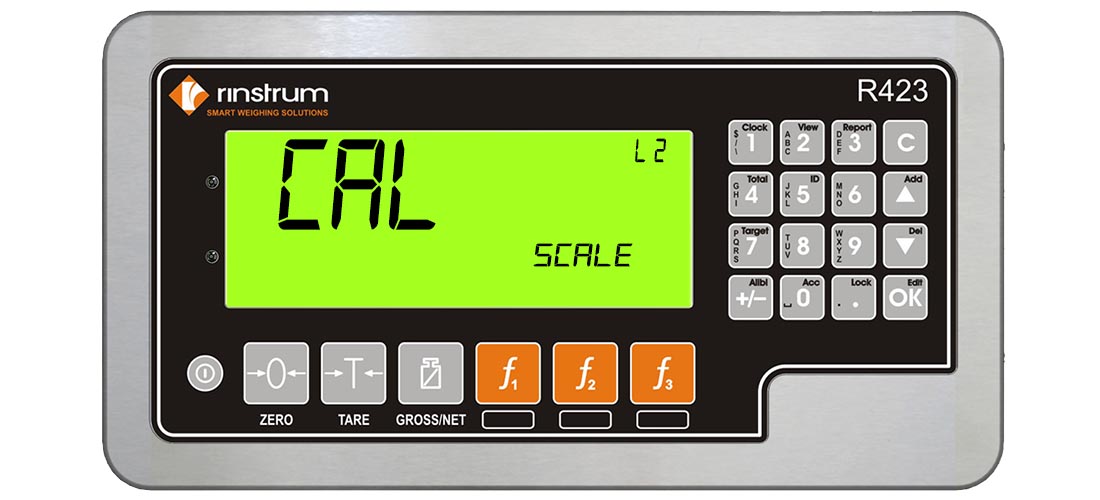

Touch Tare button until display indicates "CAL"

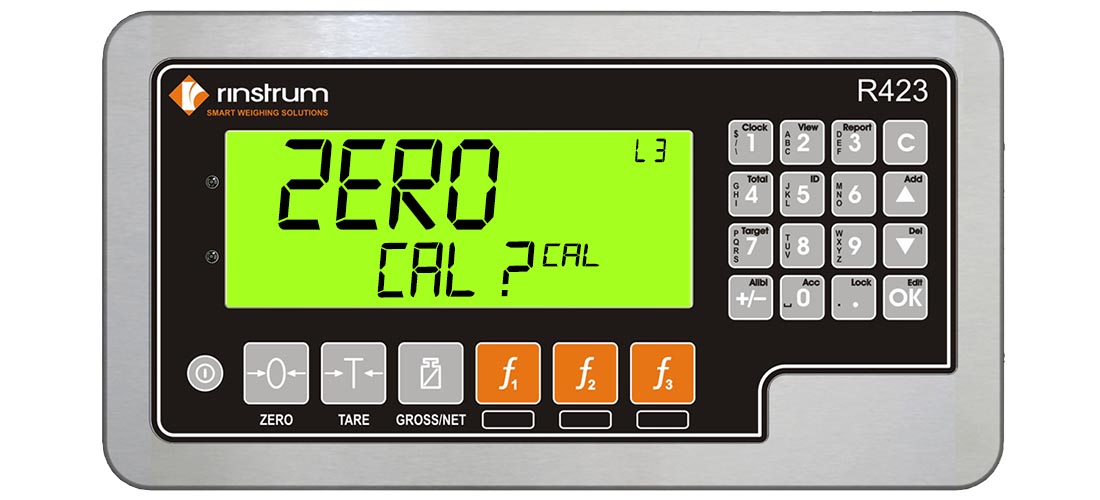

Touch Gross Net button until display indicates "ZERO"

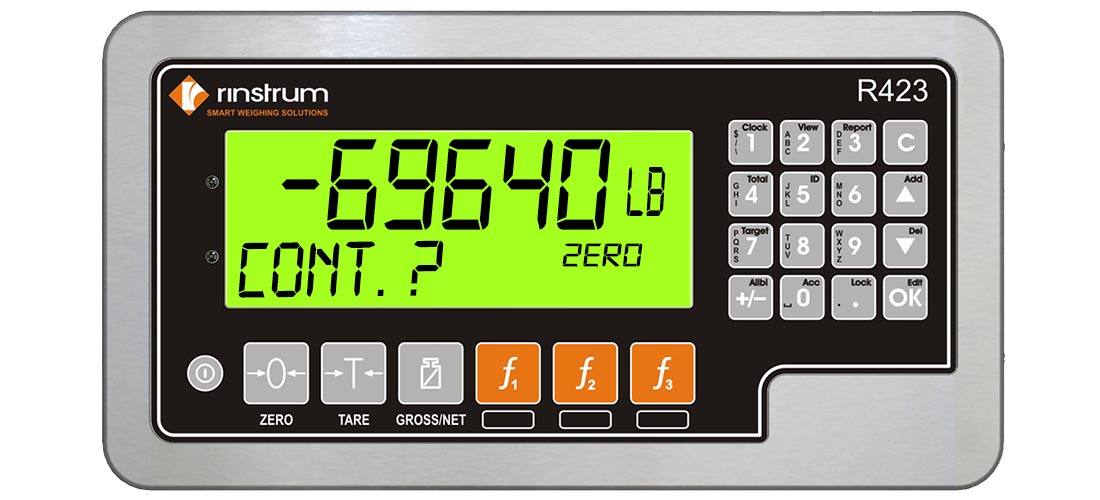

Press the OK button, display now shows a number “xxxxx” and the word "CONT ?"

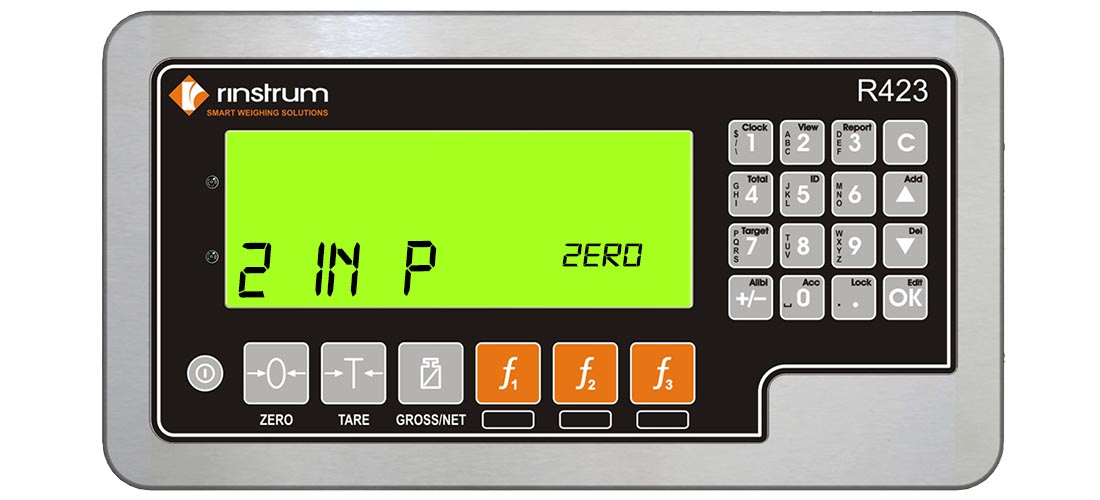

Press the OK button, the scale will temporarily flash “Z IN P”

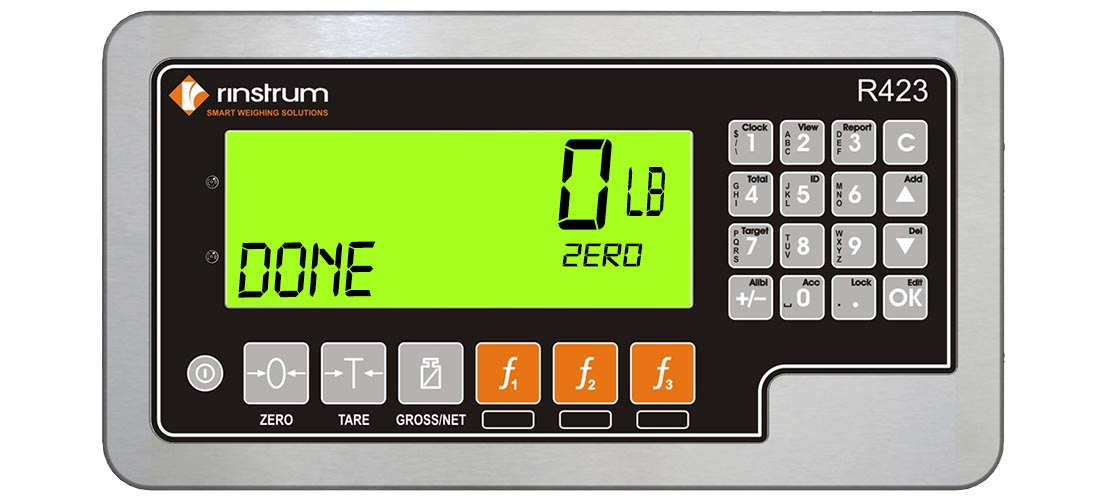

When the zeroing has finished the screen will show "DONE." Press the OK button and it will change to "ZERO CAL" again
Press the Gross Net button and the display will show “SPAN CAL ?”

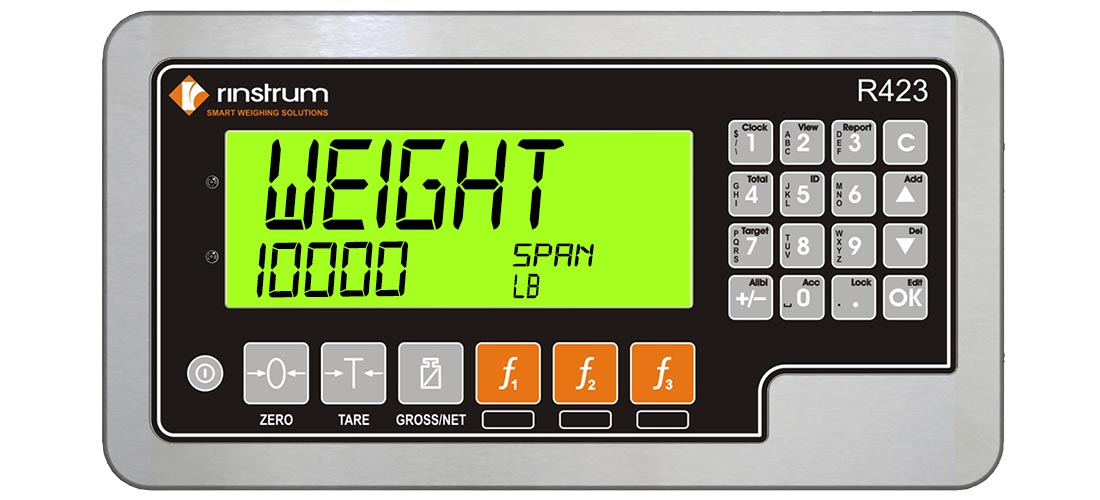

Press the OK button twice and the display will show "WEIGHT" with a number below it. Key in your calibration weight that the customer has provided you, example 10,000lb. When the weight is placed inside of the hopper, press the OK button. The scale will momentarily display “S IN P” and come back to the new weight, example 10,000lb., and say done. Press the OK button

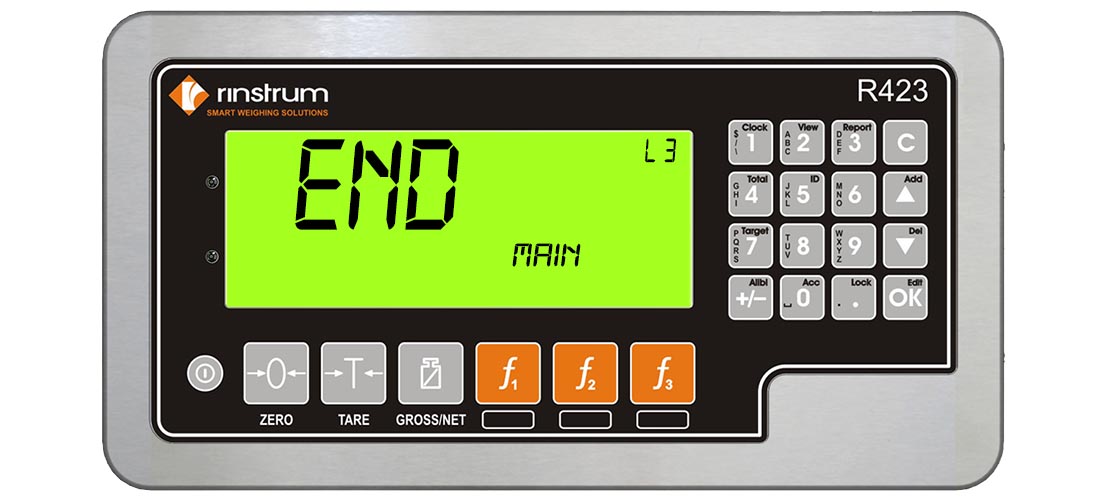

Touch Zero button until display indicates “END” and touch Tare button to save. You're finished!
